Utimec MF 500 Transmixer SD

Overview

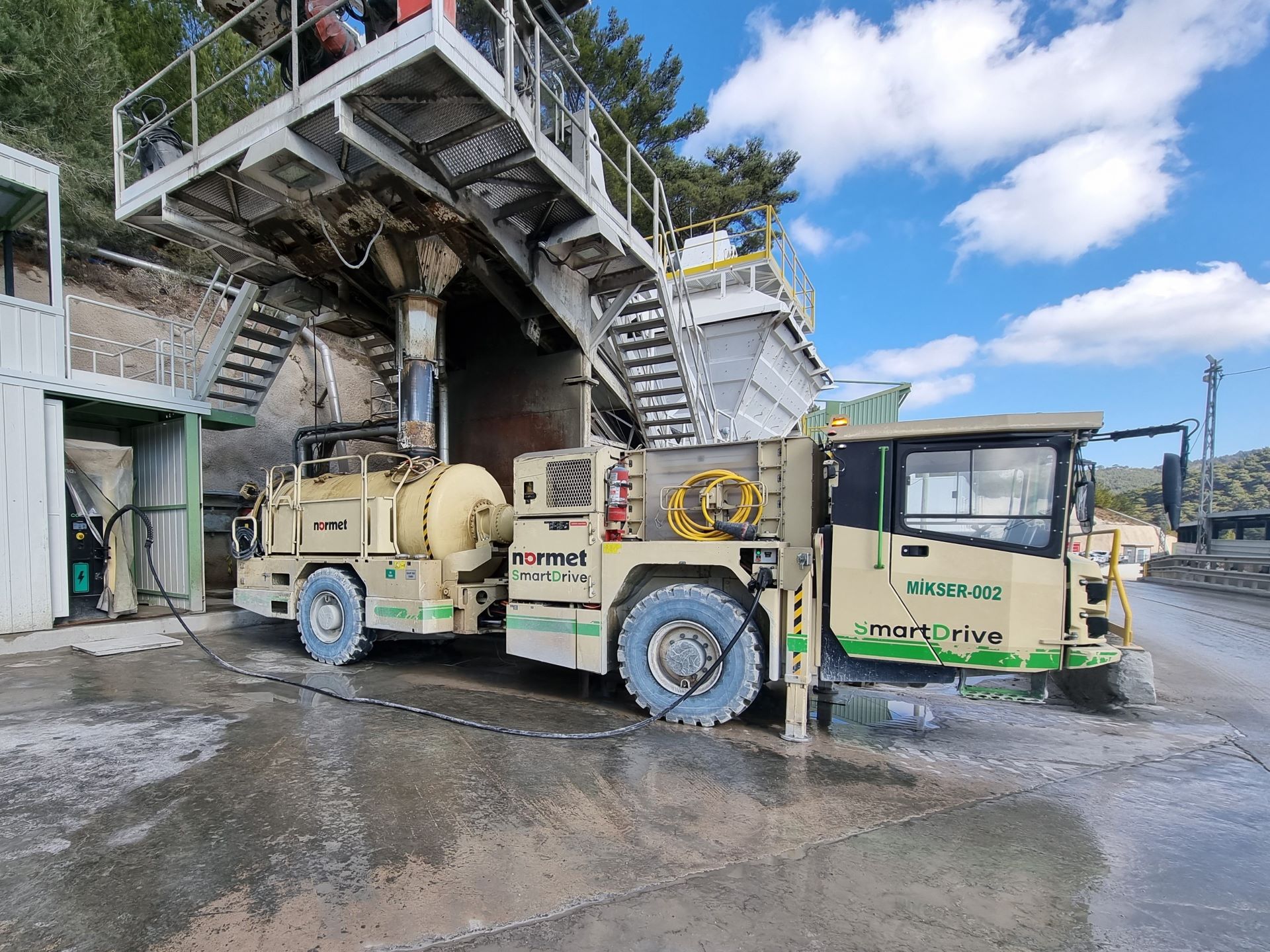

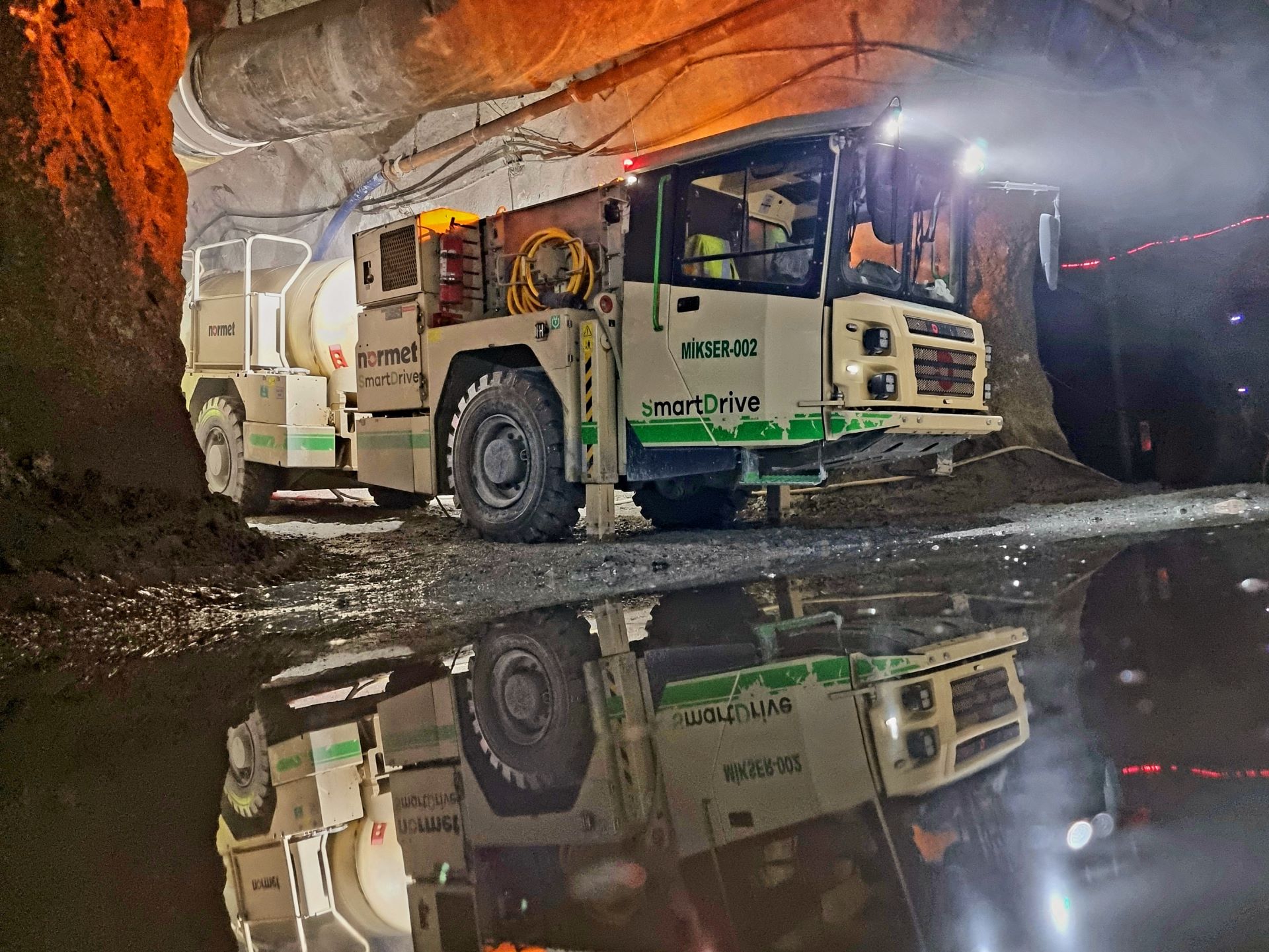

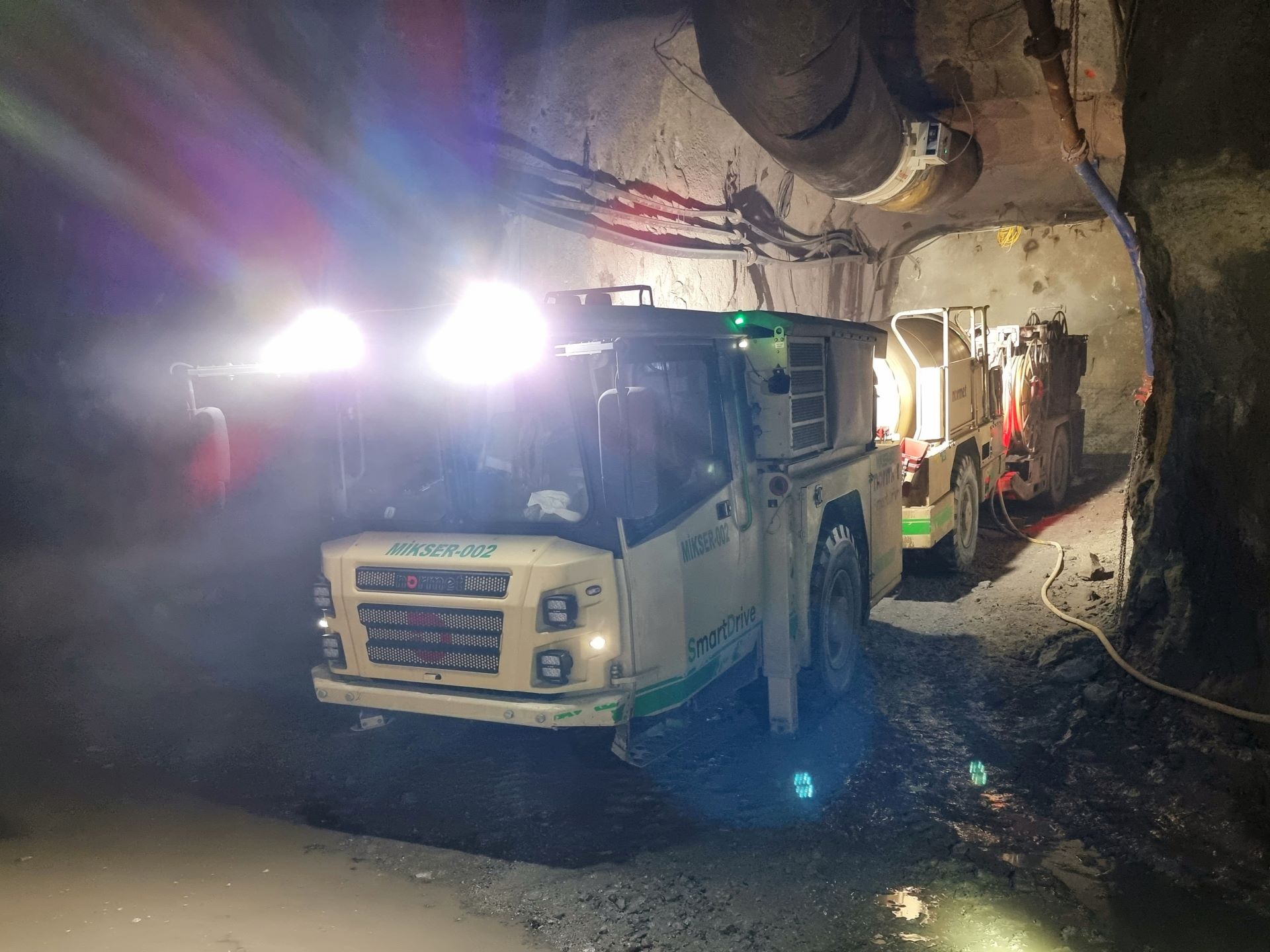

Utimec MF 500 Transmixer SD with a practical concrete carrying capacity of 4.4 m3 is designed for concrete transportation in underground mines and tunnels with a tramming height of 2.4 meters or more. Equipped with a robust concrete drum with electrically controlled mixing and unloading and a manual drum locking system, the vehicle has a FOPS/ROPS approved cabin and comes with several safety features as standard.

Logistics is an integral part of a successful sprayed concrete operation: transporting the concrete from the batching plant to the working area as safely and effectively as possible is of utmost importance.

Key specification


  • Concrete transmixer
  • Carrying capacity: 4.4 m3
  • Tramming height: 2.4 m

Features

Safety

  • FOPS/ROPS approved cabin
  • Cabin door interlock switches with safety brake application as standard
  • Optional reversing camera system for superior reversing visibility
  • No diesel fumes or hot exhaust gases
  • Almost no surface heat
  • SAHR, fail-safe safety brakes

Sustainability

  • Zero local emissions
  • Decreased ventilation need

Ergonomics and operator environment

  • Cabin designed with ergonomics and safety as the priority
  • New advanced front axle suspension system for a world-class driving experience
  • Air-suspended T-back driver’s seat with 3-point seat belt
  • Multifunctional display with access to key driving information
  • Low noise levels
  • No harmful underground diesel particles

Productivity and efficiency

  • Fast charging capable
  • Up to 50 % energy recuperation during downhill driving and deacceleration
  • Long-life industrial grade Li-ion batteries
  • Powerful direct-drive architecture for over 100 % higher uphill tramming speeds
  • Longer service intervals than diesel equivalents
  • Robust concrete drum
  • Electrically controlled mixing and unloading
  • Manual drum locking system
  • Drum rotation speed adjustable between 0-13 RPM
  • Adjustable drum discharge height (1450-2000 mm)
  • Optional hydraulically-operated discharging hatch
  • Optional remote controller for the concrete drum
  • Optional form oil system with a 30 l tank
  • Optional accelerator transfer system with a 250 l tank and a hydraulic-driven pump
  • Optional emergency drum emptying
  • Optional hydraulic concrete drum brake
  • Optional lock for drum lifting
  • Optional hydraulic front support legs
  • Optional pressure washer with a 230 l tank

Documents

Utimec MF 500 Transmixer SD


Technical Data Sheet Normet SmartDrive Offering Brochure Logistics & Transportation Offering Brochure
