Charmec LF 1105 DA

Overview

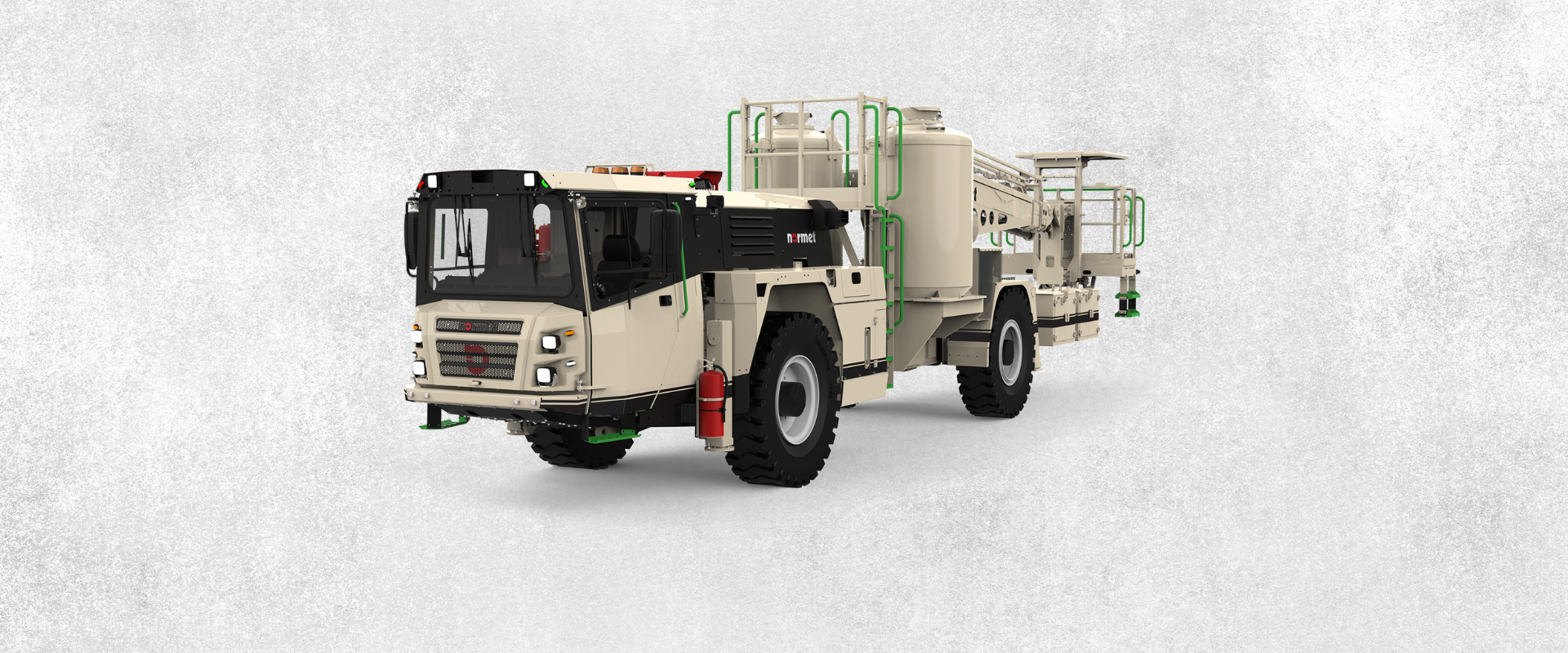

Charmec LF 1105 DA is a purpose-build underground ANFO charger featuring robust basket boom, designed for gallery sizes up to 56 x 33 feet / 16 x 10 meters. With a total bulk ANFO capacity of up to 5000 lbs / 2270 kg, dual ANSI-conforming ANFO pots, and an 1100 lbs / 500 kg basket lifting capacity, it ensures a highly effective charging process. The machine is equipped with a FOPS/ROPS cabin and comes with either Stage III powertrain architecture. It features dedicated storage solutions for stick powder boxes, primers, and detonators, eliminating the need for an additional explosive service vehicle.

We have gathered extensive expertise in underground charging from the launch of the first Normet charger in the 1970’s. Ever since, we have continuously developed our charging equipment and solidified our place as the world-leading manufacturer of underground explosives chargers.

Key specification


  • Multi-purpose charger
  • Carrying capacity: Two 910 kg or 1135 kg pots
  • Lifting capacity: Up to 500 kg
  • Max. vertical Reach: 13 m
  • Max. lateral reach: 22 m
  • Optimum excavated face reach 16 m x 10 m
  • Boom slew 90 degrees both sides
  • Tramming height: 3 m

Features

Safety

  • FOPS/ROPS approved cabin
  • Cabin door interlock switches with safety brake application as standard
  • Optional reversing camera for improved reversing visibility
  • SAHR, fail-safe safety brakes
  • Optional safety bar (also with hydraulic lift) or safety roof (with hydraulic lift / lift & slide)

Sustainability

  • Diesel work rev regulated by compressor air production enabling lower fuel consumption, less noise and cleaner work environment

Ergonomics and operator environment

  • Cabin designed with ergonomics and safety as the priority
  • Optional air conditioning and cabin heating for enclosed cabin
  • Optional front axle suspension system for increased operator comfort
  • Multifunctional display with access to key driving information
  • Air-suspended T-back seat with a retractable lap seat belt for both the driver and the passenger
  • Forward and side seating for the driver with two sets of pedals (brake and accelerator)

Productivity and efficiency

  • 2 ANFO vessels with multiple optional vessel sizes from 910 kg to 1135 kg
  • 1 or 2 charging operators
  • Available with multiple different ANFO module configurations with e.g. an on-board compressor
  • Pneumatic hand and foot control for charging and blowing, optional radio controlled charging and blowing in basket
  • Earth straps (front and rear)
  • Clever IME SLP 22 certified storage solutions for packaged explosives, primers and detonators
  • Robust and durable 2-person NHB5 ER basket boom with a 500 kg lifting capacity
  • Extendable support legs at the load end, also available with additional hydraulic front support legs

Documents

Charmec LF 1105 DA


Charmec LF 1105 DA Technical Data SheetANFO Charging Offering Brochure
