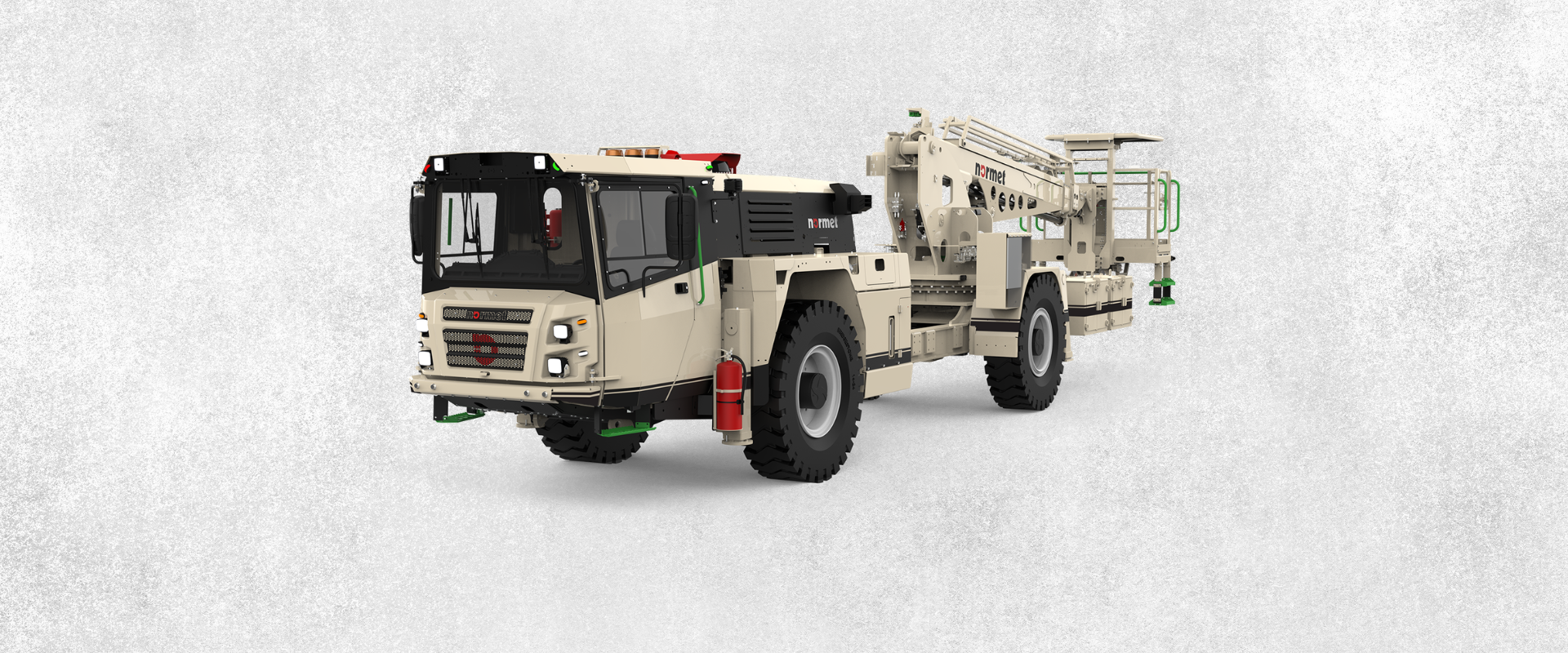

Charmec LF 1105 E
Overview
Charmec LF 1105 E is a purpose-build underground emulsion charger featuring robust basket boom, designed for gallery sizes up to 16 x 10 meters / 56 x 33 feet. With a total emulsion capacity of up to 6000 kg / 13 200 lbs and a 500 kg / 1100 lbs basket lifting capacity, it ensures a highly effective charging process. The Charmec LF 1105 E can be equipped with Normet’s own emulsion charging module ECM or with external emulsion charging system. The machine is equipped with a FOPS/ROPS cabin and comes with either Stage III or a low-emission Stage V powertrain architecture. It features dedicated storage solutions for stick powder boxes, primers, and detonators, eliminating the need for an additional explosive service vehicle.
We have gathered extensive expertise in underground charging from the launch of the first Normet charger in the 1970’s. Ever since, we have continuously developed our charging equipment and solidified our place as the world-leading manufacturer of underground explosives chargers.
Key specification
- Multi-purpose charger
- Carrying capacity: Up to 6000 kg
- Lifting capacity: Up to 500 kg
- Max. vertical Reach: 13 m
- Max. lateral reach: 22 m
- Optimum excavated face reach 16 m x 10 m
- Boom slew 90 degrees both sides
- Tramming height: 3.2 m
Features
Safety
- FOPS/ROPS approved cabin
- Cabin door interlock switches with safety brake application as standard
- Reversing camera for improved reversing visibility
- SAHR, fail-safe safety brakes
- Optional safety bar (also with hydraulic lift) or safety roof (with hydraulic lift / lift & slide)
Sustainability
- Available with low-emission Stage V engine technology
Ergonomics and operator environment
- Cabin designed with ergonomics and safety as the priority
- Optional air conditioning and cabin heating for enclosed cabin
- Front axle suspension system for increased operator comfort
- Multifunctional display with access to key driving information
- Air-suspended T-back seat with a retractable seat belt for both the driver and the passenger
Productivity and efficiency
- Earth straps (front and rear)
- Clever IME SLP 22 certified storage solutions for packaged explosives, primers and detonators
- Robust and durable 2-person basket boom with a 500 kg lifting capacity
- Extendable support legs at the load end, fixed support legs at engine end
