Alpha 30
Overview

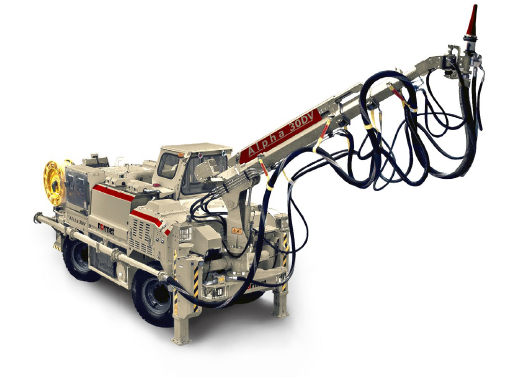

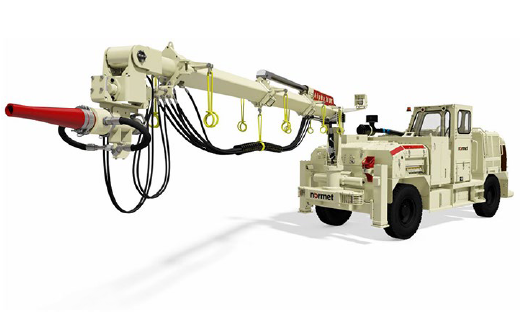

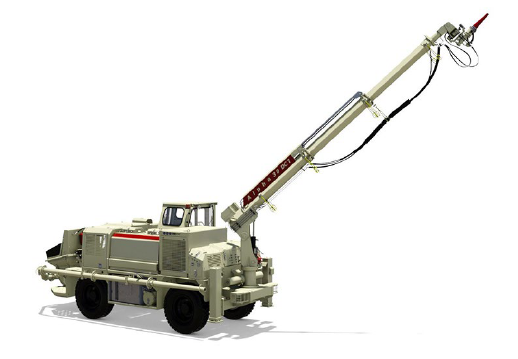

Alpha 30 is a robust concrete sprayer, designed for either diesel-hydraulic or both diesel and electro-hydraulic operation and optimized for tunnel profiles of up to 7 meters in height and 9 meters in width. The Alpha 30 offering is characterized by high reliability, durability, low maintenance costs and easy serviceability. Available with an on-board screw type air compressor and featuring the unmatched, low-pulsation NSP 30 concrete pump with a theoretical maximum pumping capacity of 30 m3/h, the machine has an accurate accelerator dosing system with a peristaltic pump and two stainless steel tanks with a total volume of 420 liters. The Alpha 30 can be fitted with a remote control system for controlling both boom and nozzle movements along with accelerator dosing and the concrete pump. Equipped with four wheel steering and 4WD for effortless operation in challenging underground conditions, the machine is powered by an efficient 120 kW Tier 3 engine and comes with a FOPS/ROPS safety cabin.
We provide everything you need to get the best results with sprayed concrete for mining and tunnelling applications, both underground and on the surface. Our offering includes equipment for both concrete spraying and transportation, construction chemicals as well as supporting technologies and services.
Key specification
- Rigid frame tunnelling sprayer
- Max. vertical reach: 8.8 m
- Concrete pump output: Up to 12-30 m3/h (depending on the model)
- Tramming height: 2.7 m
Features
Safety
- FOPS/ROPS approved cabin
- Optional reversing camera for improved reversing visibility
- SAHR fail-safe safety brakes
- Optional laminated cabin glass
Ergonomics and operator environment
- Cabin designed with ergonomics and safety as the priority
- Optional air conditioning and cabin heating for enclosed cabin
- Suspended driver’s seat with a pressure sensor and a retractable lap seat belt
- Available with lower driver’s compartment
Productivity and efficiency
- Agile spray boom with automatic nozzle rotation
- Available with the innovative Normet SmartScan concrete thickness measurement system
- Available with a hydraulically/electrically driven screw type air compressor
- Unrivalled, low-pulsation NSP 30 spray pump (up to 30 m3/h) with hydraulically driven agitator
- Available with a 55 kW electro-hydraulic power pack for the concrete pump, the boom and other spraying functions
- Radio remote control system (accelerator dosing rate, accelerator pump & nozzle rotation on/off, concrete pump on/off/reverse)
- Accelerator system with a hydraulically driven peristaltic pump (7 bar) and two stainless steel additive tanks with a combined volume of 420 l (aso available with Nordoser XEP electronically controlled accelerator system)
- Optional form oil system
- Optional wired remote control system
- Optional high-pressure washer
